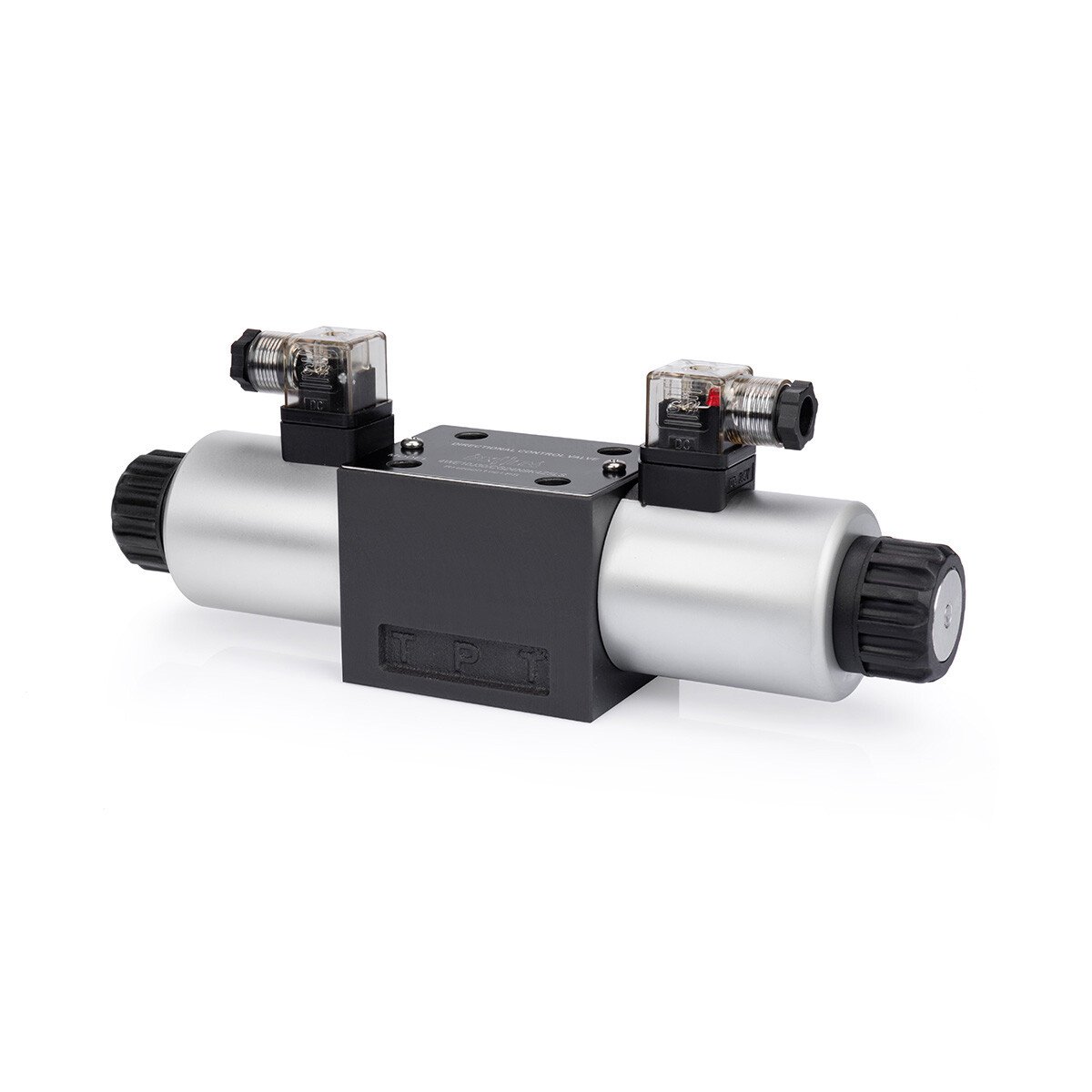

DIRECTIONAL CONTROL VALVES 4WE - 4WEH
DIRECTIONAL CONTROL VALVES 4WE - 4WEH
The directional control valves have high flow and pressure ratings that assure low pressure drop and maximum performance. This type/series of valves is interchangeable to all the major hydraulic directional valves like Rexroth 4WE6 – 4WE10 Vickers DG4V-3 – DG4V-5 Denison 4D01 – 4D02
FEATURES
-
Max working pressure up to 315 bar.
-
Size: Cetop 3, Cetop 5, Cetop 7 and Cetop 8
-
Molded coils for maximum insulating properties, that are impervious to moisture and dirt-“Din” coils are available.
-
The wet armature design eliminates the push pin seal eliminating the possibility of that seal leaking.
-
AC and DC coils are stocked and available for both the wiring box and the “din” connector coils.
- A Bolt kit comes standard with each valve. The wiring box modules come with terminal strips.
| Nominal size | Cetop 3 | Cetop 5 | Cetop 7 | ||||
|---|---|---|---|---|---|---|---|
|
Working pressure (bar)
|
Oil ports P, A, B | 315 | 315 | 280 | |||
| Oil ports T | 210 | 250 | |||||
| Max flow (L/min) | 80 | 120 | 300 | ||||
| Working fluid | Mineral oil: phosphate-ester align=center | ||||||
| Fluid temp. (C°) | from -20 to 70 | ||||||
| Viscosity (mm2/s) | from 2.8 to 100 | ||||||
|
Working voltage (V)
|
DC | 12 V 24 V |
|||||
| AC | 110V/50Hz 220V/50Hz |
||||||
| Insulation grade | IP65 | ||||||
