Fixed Displacement Vane Pumps

Single, double and through-drive configurations for any system

The fixed displacement vane pumps in the Hydraut range cover a wide spectrum of pressures and displacements, with series dedicated to industrial applications, mobile machinery and small hydraulic power units.
All series are available in multiple configurations — single, double and through-drive — to integrate precisely into the system architecture.
The range includes Hydraut-branded series with a 24-month warranty.

REQUEST QUOTE

Catalogue

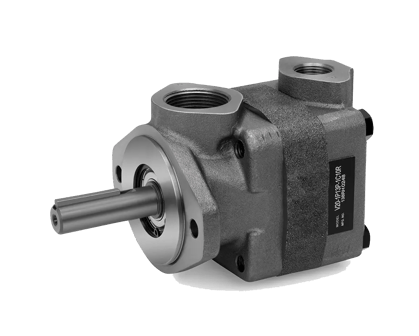

Fixed displacement vane pumps, open circuit – VH Series

The VH series covers displacements from 6.6 to 42.4 cc/rev with speeds up to 4,500 rpm. Its compact dimensions allow installation in systems where maximum space constraints are very tight.

Fixed displacement vane pumps, open circuit – VH Series

See details

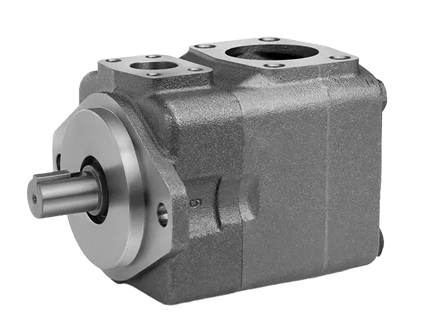

Fixed displacement vane pumps, open circuit – HS/HQ Series

The Hydraut HS and HQ series share the same robust construction architecture, differing in their application field: the HS reaches up to 170 bar for industrial applications, while the HQ reaches up to 210 bar for mobile machinery and more demanding duty cycles.

Fixed displacement vane pumps, open circuit – HS/HQ Series

See details

Selection guide

HS, HQ or VH: which fixed displacement vane pump?

Fixed displacement vane pumps give constant flow with low noise, which is why they are common in power units for machine tools, presses and injection moulding. The choice starts from the working pressure and the space available.

Up to 170 bar, industrial duty: HS series, 7.5 to 237 cc/rev, up to 1,800 rpm.
Up to 210 bar, mobile machinery and heavy cycles: HQ series, 7 to 237 cc/rev, up to 2,700 rpm.
Small power units, tight space: VH series, 6.6 to 42.4 cc/rev, up to 172 bar and 4,500 rpm.

All are open circuit, with 24-month warranty. To save energy by matching flow to demand, see the variable displacement vane pumps.

Need help choosing?

Send us pressure, flow and application: we reply with the right series and the datasheet.
