Flow Control Valves

From check to throttle: flow control in every configuration

Flow control valves in the Hydraut range regulate and manage hydraulic flow in industrial systems and modular plate assemblies.

The range covers check, throttle, bidirectional control and actuator speed regulation functions, with sandwich format solutions stackable between the directional valve and subplate without additional fittings.

The range includes Huade-branded series.

REQUEST QUOTE

Catalogue

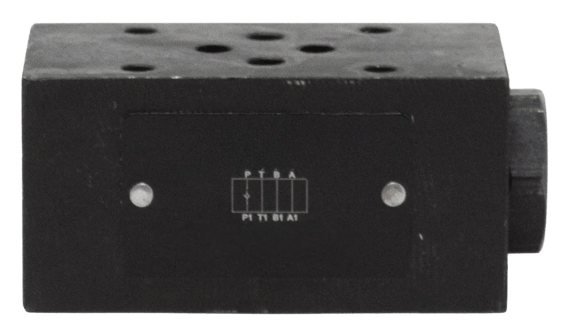

Direct-acting check valves with sandwich plate – Z1S Series

The Z1S series covers Cetop 3 and 5 sizes up to 315 bar in modular plate format. Metal-to-metal seating ensures leak-free closure even at high pressures, with the option of integrating two independent check valves in the same plate to control the two working lines separately.

Direct-acting check valves with sandwich plate – Z1S Series

See details

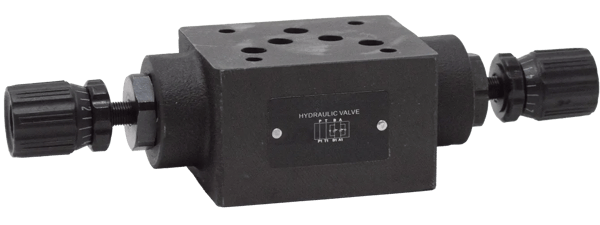

Meter-in and meter-out flow control valve in sandwich plate mounting – Z2FS Series

The Z2FS series covers Cetop 3 and 5 sizes up to 315 bar. The manually adjustable restriction limits flow in the working direction while leaving return flow unrestricted.

Meter-in and meter-out flow control valve in sandwich plate mounting – Z2FS Series

See details
