Flow and pressure control valves manage two fundamental functions in the hydraulic circuit: pressure regulation at every point in the system and flow control to the actuators. Most series are available in modular sandwich format, stackable directly in the valve stack between the directional valve and subplate without additional pipework.
The range includes Huade-branded series.

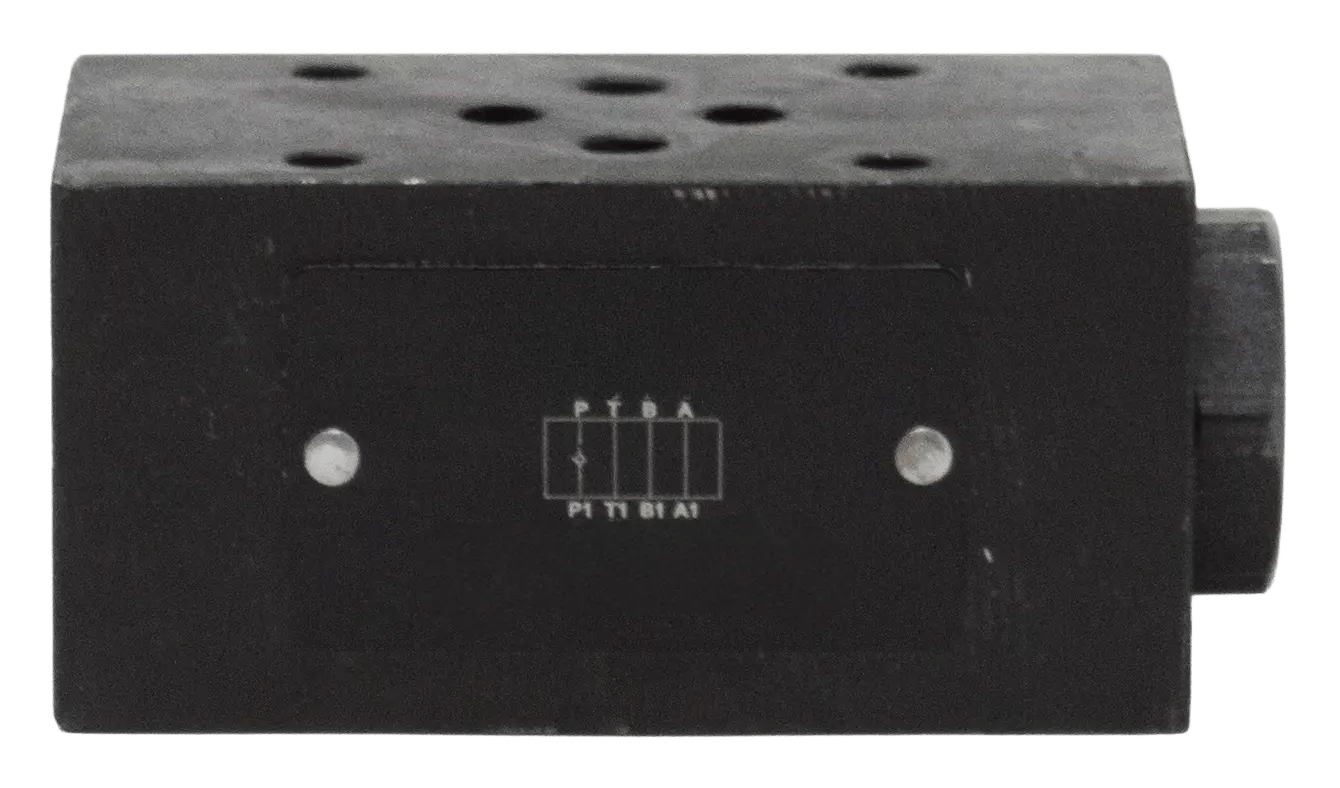

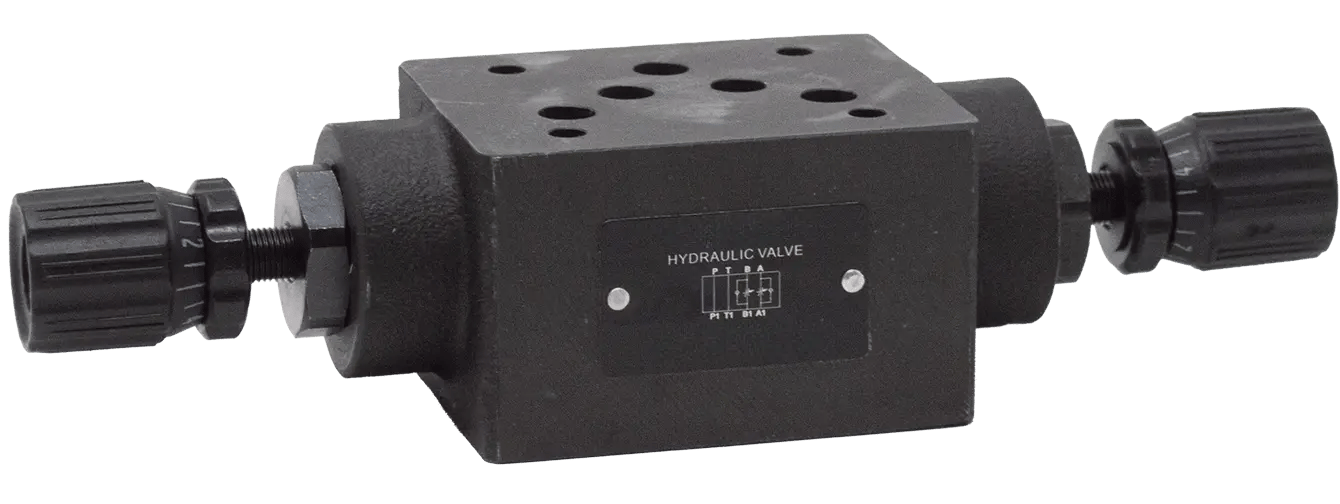

Covering check, throttle and bidirectional flow control functions in modular sandwich format. Stackable solutions that regulate actuator speed without additional components in the circuit.

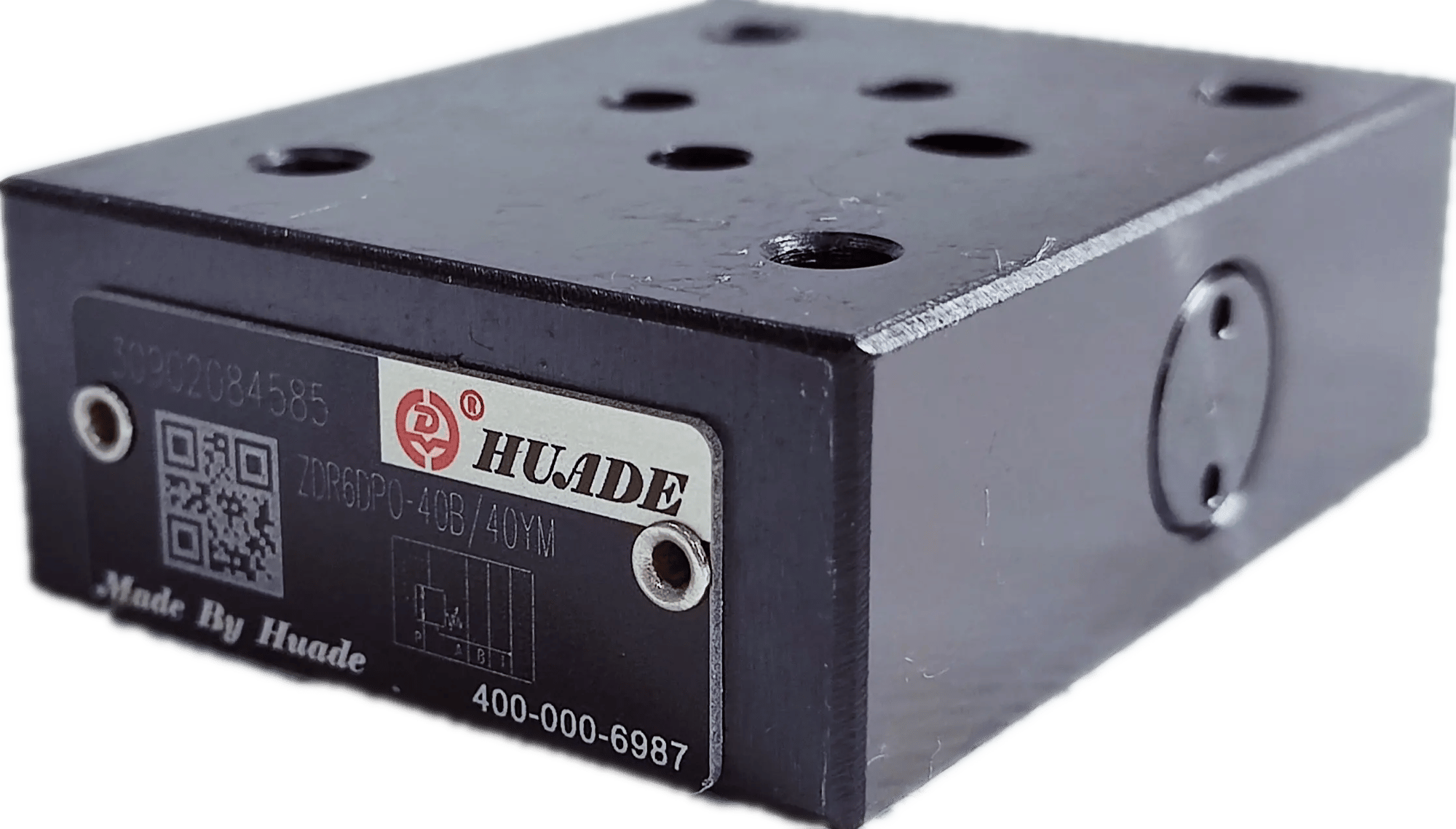

From overpressure protection to secondary pressure reduction, the range covers every pressure management requirement in modular industrial circuits.
Selection guide
In a hydraulic circuit, pressure control valves protect the system and set the working pressure (relief, reducing), while flow control valves set the speed of cylinders and motors (throttle, check). Huade sandwich valves stack between the directional valve and the subplate, so the circuit grows without extra pipework.
Start from three data: maximum flow in L/min, working pressure in bar and size (Cetop 3 or 5). Then pick the function:
Not sure which one fits your stack? Send us the Rexroth code or the circuit data and we will propose the equivalent.
Need help choosing?
Send us the Rexroth code or your circuit data: we reply with the equivalent and the datasheet.
