Axial Piston Pumps Fixed Displacement

Bent-axis architecture for open circuits

The fixed displacement axial piston pumps in the Hydraut range are based on a bent-axis architecture that ensures direct, efficient and long-lasting power transfer.
The absence of displacement control mechanisms results in a simple construction, high reliability, even under the most intensive duty cycles.
The range includes Hydraut and Hytek series.

REQUEST QUOTE

Catalogue

Bent-axis fixed displacement axial piston pumps, open circuit – HPPF Series

The Hydraut HPPF pumps cover displacements from 5 to 200 cc/rev with a nominal pressure of 400 bar. The inclined cylinder block ensures smooth flow and stable behaviour even in the presence of vibrations or sudden load variations, making them particularly suited for construction machinery, cranes and special-purpose vehicles.

Bent-axis fixed displacement axial piston pumps, open circuit – HPPF Series

See details

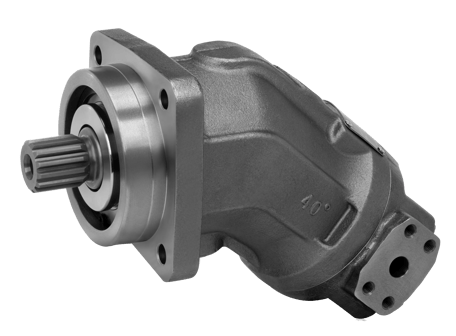

Bent-axis fixed displacement axial piston pumps, open circuit – HA2FO Series

The Hytek HA2FO series covers available displacements of 10cc, 12cc, 16cc, 23cc ,28cc, 32cc, 45cc, 56cc, 63cc, 80cc, 90cc, 107cc, 125cc, 160cc, 180cc /rev with a nominal pressure of 400 bar. The monobloc tapered piston with sealing rings is at the heart of a rotary group engineered to maintain high volumetric efficiency over time, minimising wear-prone components even in intensive stationary industrial and mobile applications.

Bent-axis fixed displacement axial piston pumps, open circuit – HA2FO Series
