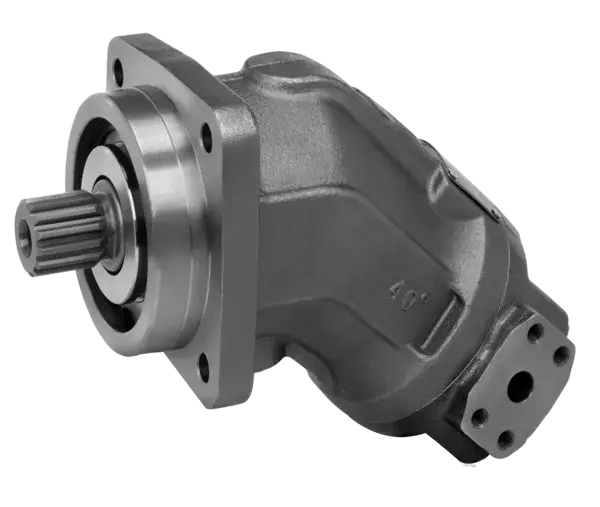

FIXED DISPLACEMENT AXIAL PISTON MOTORS - OPEN/CLOSED CIRCUIT

HPMF series

The Hydraut HPMF series is a line of fixed displacement axial piston motors with an inclined cylinder block (bent-axis) architecture for high power density and robustness in heavy-duty cycles. HPMF motors are compatible with both open and closed circuits for mobile, industrial and hydrostatic transmission applications.

REQUEST QUOTE

Details

Available displacements: from 10cc to 355cc
Maximum nominal pressure: 400 bar
Peak pressure: 450 bar
Maximum speed: 6,300 rpm
Open or closed circuit
Compatibility with a wide range of mineral oils
Available with keyed or splined shaft
Compact design

Benefits

High power density thanks to the bent-axis design
Excellent volumetric and mechanical efficiency even at high pressures
Stable behaviour at both low and high speeds
High mechanical-hydraulic efficiency even from very low speeds
Application versatility thanks to compatibility with both open and closed circuits

Application fields

Mobile applications such as earthmoving machinery, excavators, agricultural and forestry machines
Industrial applications such as machine tools and presses
Concrete mixers
Sweepers
Shredders

Technical data sheet

Technical data sheet HPMF SERIEs HYDRAUT

Code

Displacement (cm3)

Speed nom max (rpm)

P nom (bar)

P max peak (bar)

HA2FM10

10.3

3150

400

450

HA2FM12

3150

400

450

HA2FM16

3150

400

450

HA2FM23

22.9

6300

300

350

HA2FM28

28,1

6300

300

350

HA2FM32

6300

300

350

HA2FM45

45.6

5600

300

350

HA2FM56

56.1

5000

300

350

HA2FM63

5000

300

350

HA2FM80

80.4

4500

300

350

HA2FM90

4500

300

350

HA2FM107

106.7

4000

300

350

HA2FM125

125

4000

300

350

HA2FM160

160.4

3600

300

350

HA2FM180

180

3600

300

350

HA2FM200

200

1550

350

400

HA2FM250

250

1500

350

400

HA2FM355

355

1320

350

400

Code HA2FM10

Displacement (cm3) 10.3

Speed nom max (rpm) 3150

P nom (bar) 400

P max peak (bar) 450

Code HA2FM12

Displacement (cm3) 12

Speed nom max (rpm) 3150

P nom (bar) 400

P max peak (bar) 450

Code HA2FM16

Displacement (cm3) 16

Speed nom max (rpm) 3150

P nom (bar) 400

P max peak (bar) 450

Code HA2FM23

Displacement (cm3) 22.9

Speed nom max (rpm) 6300

P nom (bar) 300

P max peak (bar) 350

Code HA2FM28

Displacement (cm3) 28,1

Speed nom max (rpm) 6300

P nom (bar) 300

P max peak (bar) 350

Code HA2FM32

Displacement (cm3) 32

Speed nom max (rpm) 6300

P nom (bar) 300

P max peak (bar) 350

Code HA2FM45

Displacement (cm3) 45.6

Speed nom max (rpm) 5600

P nom (bar) 300

P max peak (bar) 350

Code HA2FM56

Displacement (cm3) 56.1

Speed nom max (rpm) 5000

P nom (bar) 300

P max peak (bar) 350

Code HA2FM63

Displacement (cm3) 63

Speed nom max (rpm) 5000

P nom (bar) 300

P max peak (bar) 350

Code HA2FM80

Displacement (cm3) 80.4

Speed nom max (rpm) 4500

P nom (bar) 300

P max peak (bar) 350

Code HA2FM90

Displacement (cm3) 90

Speed nom max (rpm) 4500

P nom (bar) 300

P max peak (bar) 350

Code HA2FM107

Displacement (cm3) 106.7

Speed nom max (rpm) 4000

P nom (bar) 300

P max peak (bar) 350

Code HA2FM125

Displacement (cm3) 125

Speed nom max (rpm) 4000

P nom (bar) 300

P max peak (bar) 350

Code HA2FM160

Displacement (cm3) 160.4

Speed nom max (rpm) 3600

P nom (bar) 300

P max peak (bar) 350

Code HA2FM180

Displacement (cm3) 180

Speed nom max (rpm) 3600

P nom (bar) 300

P max peak (bar) 350

Code HA2FM200

Displacement (cm3) 200

Speed nom max (rpm) 1550

P nom (bar) 350

P max peak (bar) 400

Code HA2FM250

Displacement (cm3) 250

Speed nom max (rpm) 1500

P nom (bar) 350

P max peak (bar) 400

Code HA2FM355

Displacement (cm3) 355

Speed nom max (rpm) 1320

P nom (bar) 350

P max peak (bar) 400

New catalogue online soon*

HPMF series

Details

Benefits

Application fields

Technical data sheet HPMF SERIEs HYDRAUT

*The new catalogue is coming soon! This series shares the same dimensional and performance specifications as the Hytek HA2FM series — the reference datasheet is available for download on the dedicated page. For any enquiry, contact our sales team: info@hydraut.com
