VH series

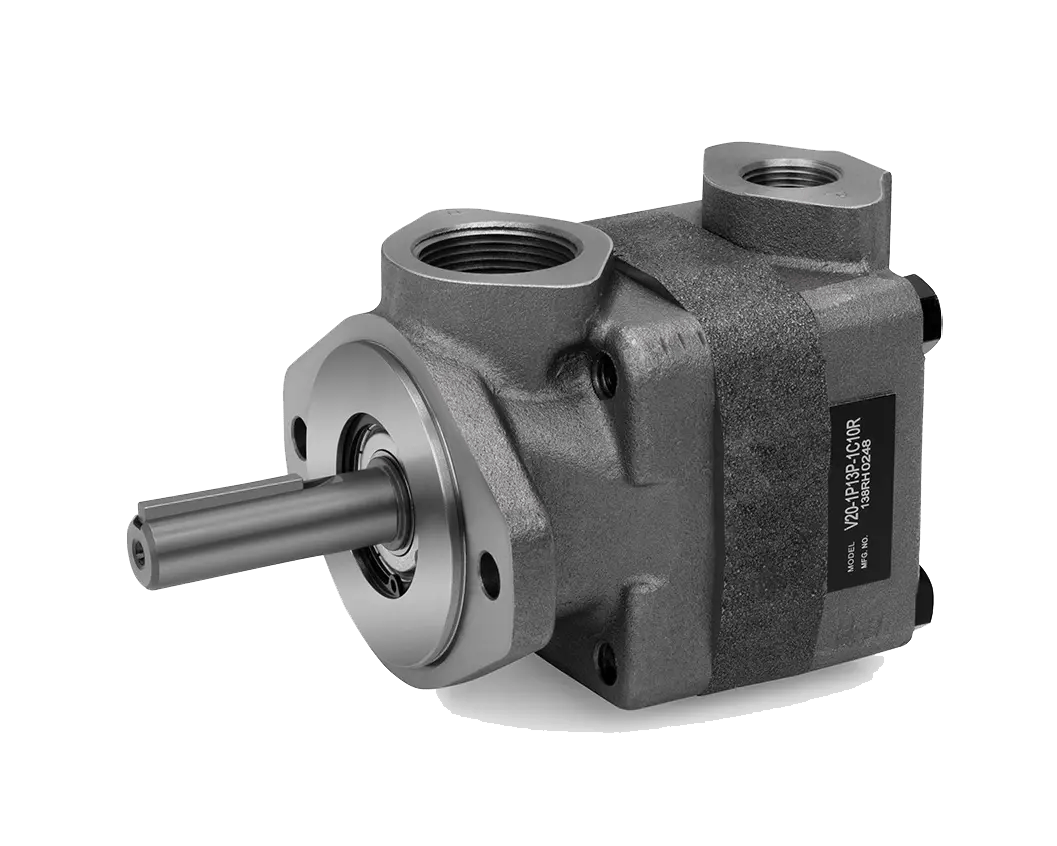

The Hydraut VH10 and VH20 series are fixed displacement vane pumps for industrial open-circuit systems. Featuring a compact design, they are ideal for space-constrained installations requiring reliability and good operating pressures. Available in double tandem versions V2010 and V2020 to supply two independent circuits from a single drive shaft.
Details
- Available displacements: from 6.6cc to 42.4cc
- Nominal pressure: up to 172 bar
- Maximum speed: 4,500 rpm
- Open circuit
- Compatible fluids: mineral oil with anti-wear additives, phosphate ester-based fluids, water glycol fluids
Benefits
- Compact, lightweight and low-footprint construction for easy integration even in space-constrained power units
- Quiet operation
- High long-term reliability
- Direct replacement for Vickers V10/V20 pumps with no system modifications required
Application fields
- Hydraulic power units
- Machine tools
- Plastic and rubber injection moulding machines
- Deburring presses
- Die casting machines
- Earthmoving machinery
- Construction machinery
Technical data sheet vh series HYDRAUT
| Code | Size | Displacement (cm3) | Speed nom max (rpm) | P nom (bar) | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VH10 |
|
|||||||||||||||||||||||||||||||||||||||||||
| VH20 |
|
|||||||||||||||||||||||||||||||||||||||||||
Code
VH10
Size
2
Displacement (cm3)
6.6
Speed nom max (rpm)
4500
P nom (bar)
172
Code
VH10
Size
3
Displacement (cm3)
9.8
Speed nom max (rpm)
4000
P nom (bar)
172
Code
VH10
Size
4
Displacement (cm3)
13.1
Speed nom max (rpm)
3400
P nom (bar)
172
Code
VH10
Size
5
Displacement (cm3)
16.4
Speed nom max (rpm)
3200
P nom (bar)
172
Code
VH10
Size
6
Displacement (cm3)
19.5
Speed nom max (rpm)
3000
P nom (bar)
152
Code
VH10
Size
7
Displacement (cm3)
22.8
Speed nom max (rpm)
2800
P nom (bar)
138
Code
VH20
Size
6
Displacement (cm3)
19.5
Speed nom max (rpm)
3400
P nom (bar)
172
Code
VH20
Size
7
Displacement (cm3)
22.8
Speed nom max (rpm)
3000
P nom (bar)
172
Code
VH20
Size
8
Displacement (cm3)
26.5
Speed nom max (rpm)
2800
P nom (bar)
172
Code
VH20
Size
9
Displacement (cm3)
29.7
Speed nom max (rpm)
2800
P nom (bar)
172
Code
VH20
Size
10
Displacement (cm3)
30
Speed nom max (rpm)
2800
P nom (bar)
172
Code
VH20
Size
11
Displacement (cm3)
36.4
Speed nom max (rpm)
2500
P nom (bar)
172
Code
VH20
Size
12
Displacement (cm3)
39
Speed nom max (rpm)
2400
P nom (bar)
152
Code
VH20
Size
13
Displacement (cm3)
42.4
Speed nom max (rpm)
2400
P nom (bar)
152
