PRESSURE PROPORTIONAL VALVES — PRESSURE RELIEF — OPEN LOOP

    HD-(Z)DBE(E) SERIES

    HUADE LOGO

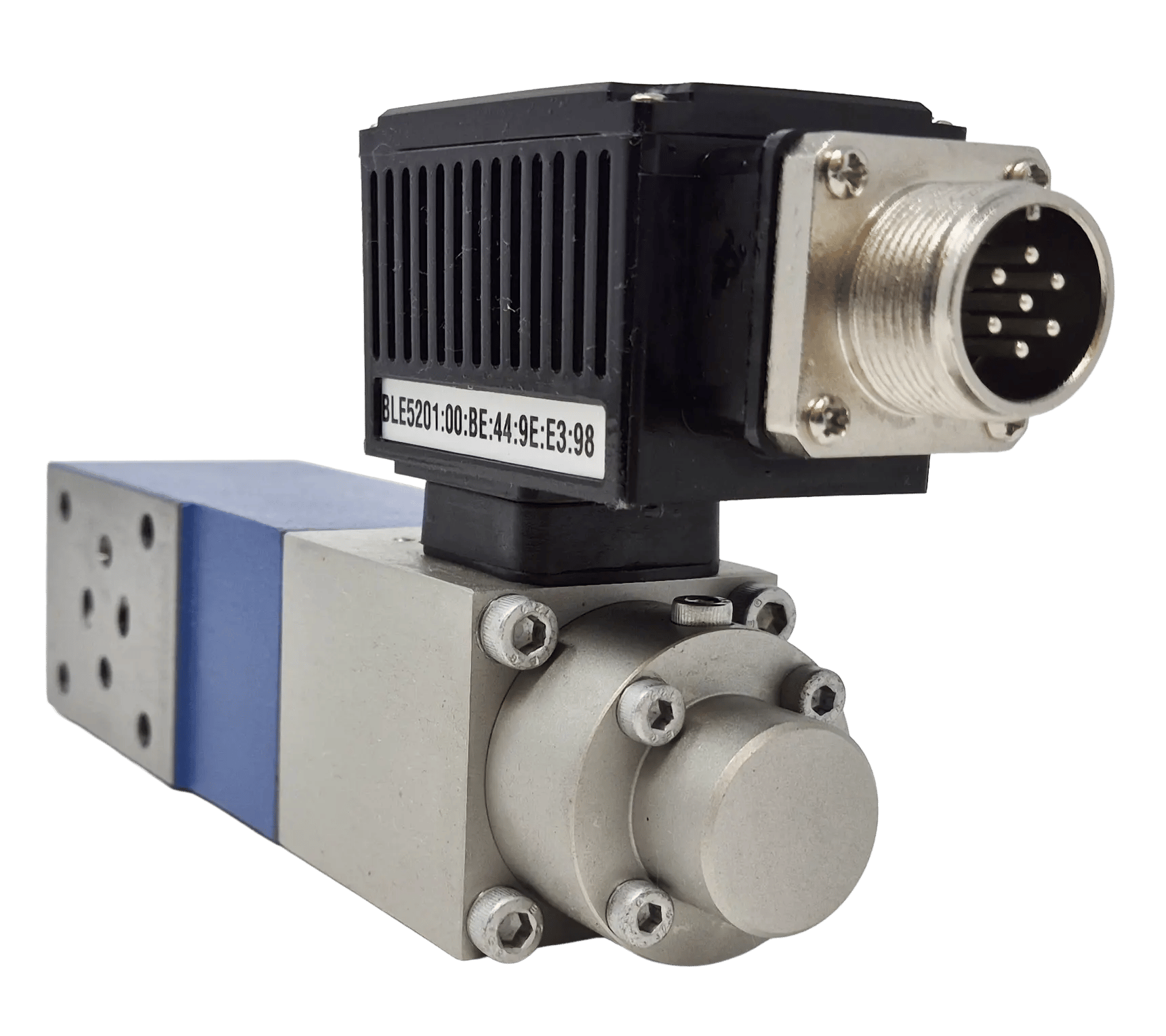

    The HD-(Z)DBE(E) series by Huade is a new-generation pilot-operated proportional pressure relief valve, size 6, with or without integrated OBE control electronics operating in open loop. System pressure is regulated continuously and proportionally to the electrical command signal.

    Request quote

    Details

    • Versions: HD-DBEE (internal pilot drain, subplate mounting) · HD-ZDBEE (external pilot drain via port Y, sandwich plate format)
    • Control type: closed loop — OBE electronics integrated in the valve body (HD-(Z)DBEE verision)
    • Maximum operating pressure: 315 bar (31.5 MPa)
    • Maximum flow rate: 30 L/min





    12-MONTH WARRANTY

    Benefits

    • Closed-loop control automatically compensates for friction and temperature variations
    • Reduced pressure/command characteristic curve scatter compared to the external electronics version, thanks to integrated OBE closed-loop control
    • Precise dynamic response, adaptable to each phase of the cycle
    • Fewer components in the electrical cabinet thanks to electronics integrated directly in the valve body
    • The ZDBEE version with external pilot drain (port Y) allows pilot circuit separation from the main circuit
    • Independently adjustable rise and fall ramps via integrated potentiometers

    Application fields

    • Hydraulic presses with variable pressure cycles
    • Plastics and rubber processing machinery
    • Machine tools with precise working pressure control
    • Metallurgical and steel plants
    • Test benches and hydraulic power units








    Technical data sheet HD-(Z)DBE(E) Series Huade

    Code SizeQ max (l/min)P max (bar)
    HD-(Z)DBE(E)6
    6
    30 315
    Code HD-(Z)DBE(E)6
    Size 6
    Q max (l/min) 30
    P max (bar) 315
