DIRECTIONAL VALVES – SOLENOID OPERATED POPPET

HD-M-SED Series

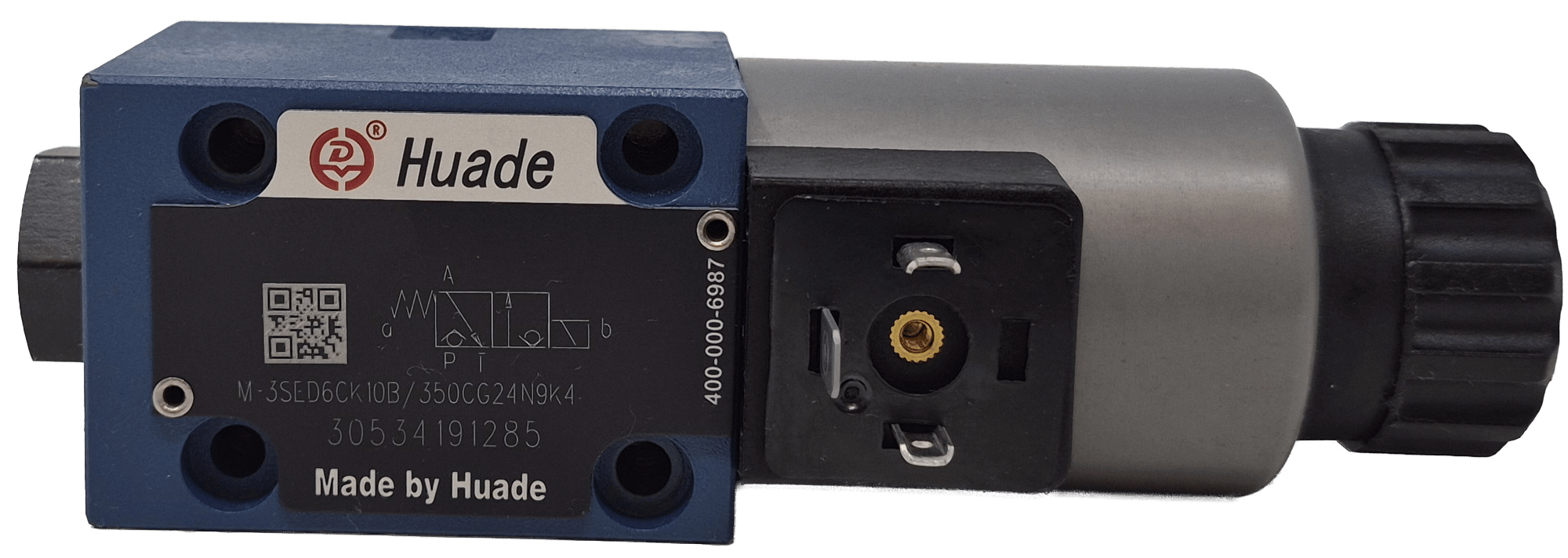

The Huade HD-M-SED series is a line of direct solenoid-actuated seat-type directional valves, available in 3/2-way and 4/2-way configurations. The seat technology ensures leak-free sealing even at maximum operating pressures, making this type of valve the indicated solution for circuits where flow blocking must be absolute.

RICHIEDI PREVENTIVO

Details

DETAILS

Available sizes: 6 (CETOP 3)
Configurations: 3/2-way · 4/2-way
Maximum operating pressure: 350 bar
Maximum flow rate: 25 L/min
Actuation: direct-acting DC solenoid
Compatible fluids: mineral oil (NBR seals); phosphate ester (FKM seals)

12-MONTH WARRANTY

Benefits

BENEFITS

Leak-free sealing at the closed port even at maximum pressure, thanks to seat technology
Pressure-balanced design
Ability to hold the load in any position even with the pump off
Protected manual override for actuation in the absence of electrical power, without the need for circuit intervention

Application fields

APPLICATION FIELDS

Lifting and handling systems with leak-free locking requirements
Circuits requiring load holding with the pump off
Earthmoving machines and work vehicles
Presses and machine tools with positive axis locking

Technical data sheet

Technical data sheet HD-M-SED SERIES HUADE

Code

Size

Q max (l/min)

P max (bar)

HD-M-SED6

350

Code HD-M-SED6

Size 6

Q max (l/min) 25

P max (bar) 350

Download catalogue

Rexroth cross-reference

Huade HD-M-SED: the alternative to Rexroth M-SED6 poppet directional valves

The Huade HD-M-SED is a solenoid-operated poppet directional valve in NG6 (Cetop 3): the seat closes without leakage, so the load stays in position with the pump off. It is the alternative to the Rexroth M-SED6, with the same ISO 4401 interface.

Series cross-reference

Rexroth series	Huade series	Size / interface	Max flow	Max pressure
M-SED6	HD-M-SED6	NG6 – Cetop 3	25 l/min	350 bar

Why choose it instead of the original

Leak-free blocking up to 350 bar: for clamping, holding and safety circuits.
24-month warranty and every unit tested on our test bench in Gallarate (Italy) before shipment.
Delivery: 24–48 hours for stock items, 2 weeks standard.
Technical support: our engineers convert your current code and check the installation with you.

What we check before confirming the replacement

Function symbol (2/2 or 3/2)
Coil voltage, AC or DC, and connector
Normally open or closed
Seals: NBR or FPM

Send us your Rexroth code

We return the equivalent code, checked by our technical team, with price and delivery time.

Get the equivalent code

Frequently asked questions

Which valve replaces a Rexroth M-SED6?

The Huade HD-M-SED6: NG6 / Cetop 3 poppet valve, up to 25 l/min and 350 bar.

Why a poppet valve instead of a spool valve?

Spool valves always have a small internal leakage; a poppet seat closes tightly, so the actuator does not drift under load.

How do I get the equivalent code?

Send us the full Rexroth M-SED6 code from the nameplate: our technical team returns the equivalent HD-M-SED code, checked for size, version and seals.

Rexroth, Voith and the series names mentioned are trademarks of their respective owners and are used only to indicate compatibility. Hydraut Europe S.r.l. is not affiliated with these companies. Interchangeability is confirmed code by code by our technical team.
