Hytek hydraulics for agricultural machinery
Pumps, motors and hydrostatic transmission units for tractors, combine harvesters, rice, sugarcane and cotton harvesters, transplanters and crawler machines. Hytek makes them; Hydraut supplies, tests and supports them in Europe.
Agricultural machinery
Hydraulics built for the field, from the tractor to the harvester
Farm machines are hard on a hydraulic system: long days at partial load, dust and heat, cold starts, and operators who expect smooth, precise control. Hytek designs its pumps, motors and transmission units for these conditions, and its agricultural range covers the whole machine: travel, header, picking, hoisting and steering.
Five reasons machine builders choose Hytek
- Reliable: high-pressure components with long service life, with low-temperature seals and high-pressure shaft seals so that picking and travel keep working in the cold.
- Energy saving: variable displacement, load sensing and constant-pressure systems match hydraulic power to what the machine actually needs, for lower fuel consumption.
- Safe: pressure cut-off, load hold and protection valves in the closed circuits.
- Accurate: electric proportional control of travel speed, header and picking, for a smooth, hassle-free drive and precise working speed.
- Efficient: high power density and high torque for fast travel and efficient harvesting, with closed circuits that dissipate heat better.
Hytek internal gear pumps on farm machines
Internal gear pumps are the product Hytek is best known for: it has been the No. 1 supplier of internal gear pumps for injection moulding machines in China for three years in a row (China Plastics Machinery Industry Association, 2020–2022). On tractors the same technology is used for the hoisting system, where low noise and smooth flow count. See the Hytek HG and HGX series.
Below, application by application, the series Hytek recommends and the Hydraut pages where you can find the datasheets. Not sure which one fits your machine? Send us the machine data and our technical team will size the system with you.
Tractors and crawler machines
Tractors and tracked machinery

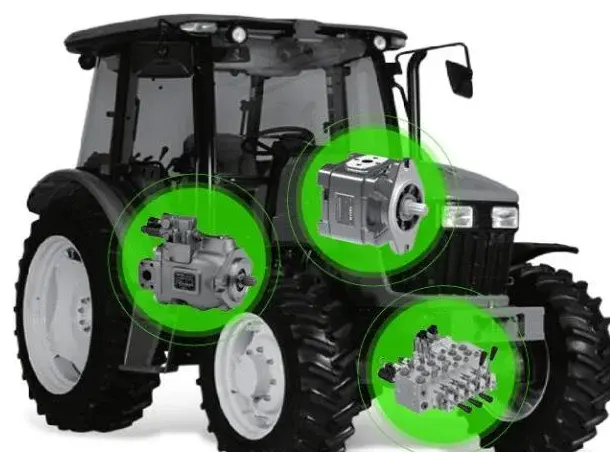

Tractors: hoisting and implement hydraulics
On a tractor Hytek proposes a simple, robust system for the hoisting circuit: a load-sensing open-circuit pump, an internal gear pump for the auxiliary functions and a proportional valve group for the implements.
| Function | Hytek component | Main characteristics |
|---|---|---|
| Hoisting, open circuit | HP3VO variable pump | Load sensing and pressure cut-off, up to 320 bar max. pressure |
| Auxiliary functions | Internal gear pump (HG-HGX family) | 25–40 cc/rev, up to 350 bar max. pressure |
| Implements | Proportional valve group | Up to 140 l/min, load pressure compensation, 450 bar max. pressure |

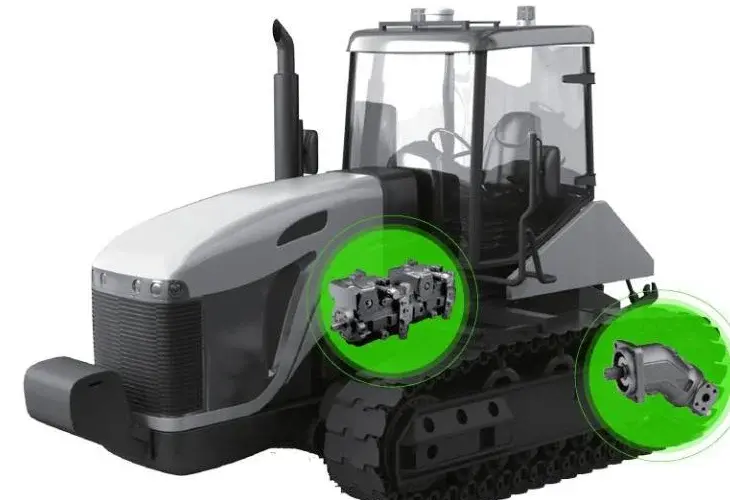

Crawler machines: closed-circuit travel
Tracked machines need torque and fine speed control on every kind of terrain. Hytek builds the travel system as a closed-circuit hydrostatic transmission, in two layouts:
| Layout | Pumps | Motors |
|---|---|---|
| Single path (one pump drives both tracks) | HA4VTG (75–105 cc/rev), HP2VC (56–71 cc/rev) | HAA2FM fixed (45–107 cc/rev), HA6VE variable (55–80 cc/rev) |
| Dual path (one pump per track) | HP4VC (28–53 cc/rev), HP2VC (56–71 cc/rev) | Fixed-displacement motors, HA2FM family |
- Accurate displacement control for a smooth, hassle-free drive.
- Several displacement combinations and control options (mechanical, hydraulic, electric proportional).
- High power density and torque, to work on different terrains.
Sizes shown are those of the Hytek reference systems; the series come in other displacements too. Maximum pressure from 350 to 450 bar depending on the series.
Harvesters
Combine, rice, sugarcane and cotton harvesters
Harvesters combine two jobs in one machine: moving it across the field and driving the working head. Hytek solves both with closed-circuit hydrostatic systems, built from the same pump and motor series you find in the Hydraut catalogue.

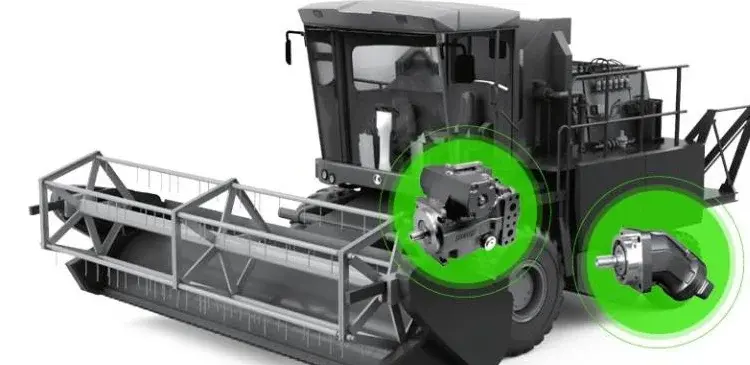

Wheat and corn combine harvesters
- Closed-circuit travel with a variable pump and motors for the wheels, with accurate displacement control for a hassle-free drive.
- High-efficiency components for fast travel between fields and efficient harvesting.
- Several displacement combinations and control options, to fit machines of different sizes.

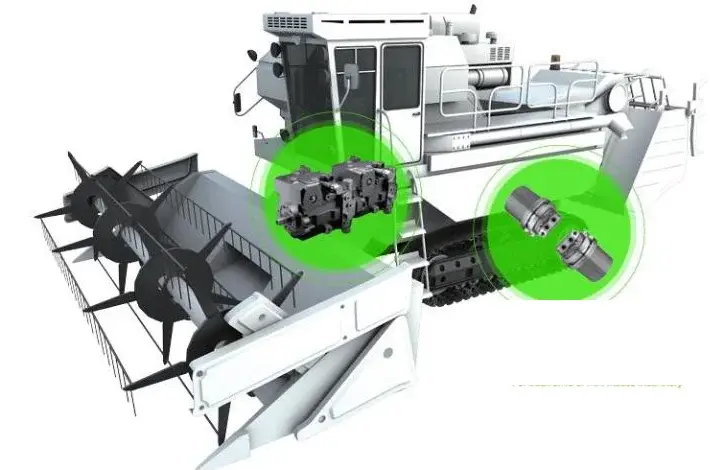

Rice harvesters
- High pressure and high efficiency in a compact package.
- Smaller turning radius, for more comfortable and flexible handling in small fields.

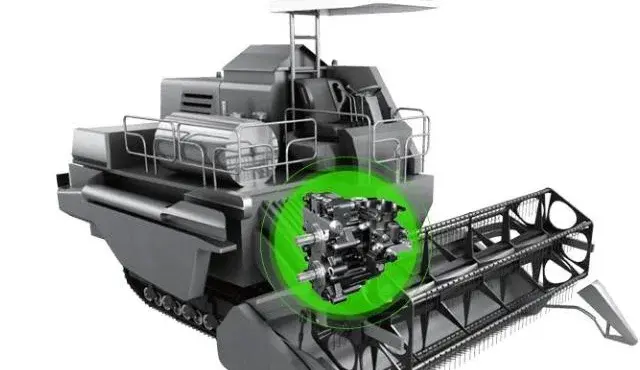

- For crawler rice harvesters, the integrated HT hydrostatic transmission unit (pump and motor in one body).

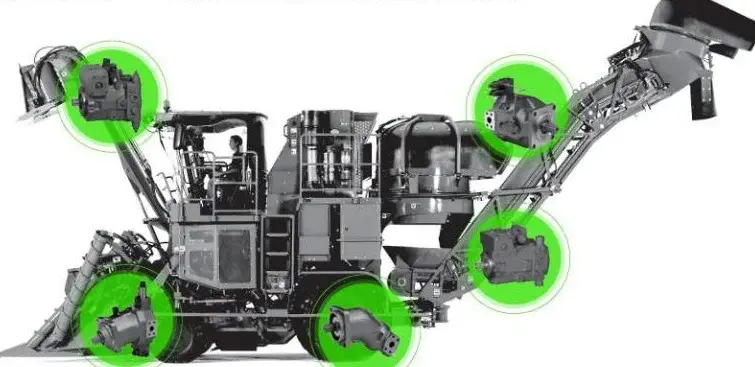

Sugarcane harvesters
- Travel and combine header run on closed circuits that stay efficient and stable under load.
- Electric proportional constant-pressure control, suited to real working conditions.
- Closed-circuit cooling to improve heat dissipation and periodically renew the oil.
- Proportional control of the whole system, for comfortable operation and an easy path to smarter machines.

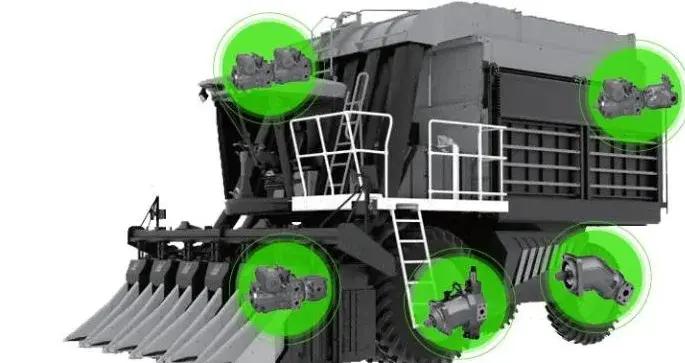

Cotton pickers
- Closed-circuit electric proportional travel: quick response of speed adjustment, matched in real time to the walking speed.
- Closed-loop electric proportional picking system, with precise control and quick response of the rotation speed.
- Constant-pressure working system for reliable performance.
- Low-temperature sealing and high-pressure shaft sealing, to keep picking under low-temperature conditions.
| Function | Typical Hytek series | Rexroth series replaced |
|---|---|---|
| Closed-circuit travel pumps | HP2VC, HA4VTG | A4VG, A4VTG |
| Wheel and track motors | HA2FM, HAA2FM, HA6VM | A2FM, AA2FM, A6VM |
| Header, reel and auxiliary drives | HA2FE, HA2FO, HG-HGX | A2FE, A2FO, PGH |
The final choice depends on the machine. Send us its data and we confirm the series and the sizes.
Hydrostatic transmission units
HT and HMT: pump and motor in a single unit
For small and medium agricultural machines Hytek offers a different approach to the closed circuit: the HT and HMT hydrostatic transmission units, in which pump and motor are integrated in one compact body. They are developed specifically for agricultural machinery, to make better use of the drive power in a smaller space.
| Unit | Typical machine | What it offers |
|---|---|---|
| HT | Crawler rice harvesters | High pressure, high speed and long service life; more accurate control, with micro-motion performance improved by 10% |
| HMT 20 / HMT 21 | Rice transplanters and small self-propelled machines | 20 and 21 cc/rev, mechanical servo or proportional control, up to 320 and 350 bar max. pressure |

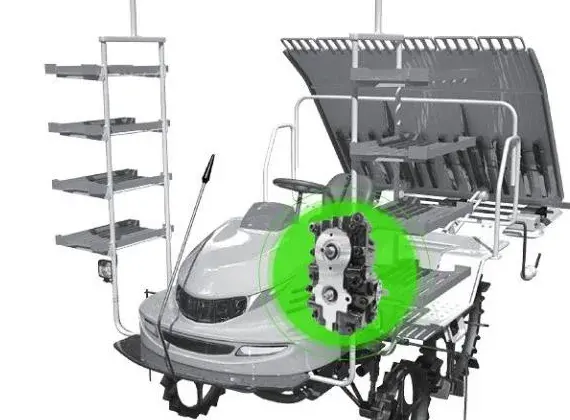

A transplanter has to move at a steady, precise speed while planting: that is where the efficiency, strength and accuracy of the HMT unit make the difference. HT and HMT units are supplied on request: tell us the machine and the required speed range and we confirm availability and delivery.
