VARIABLE DISPLACEMENT AXIAL PISTON PUMPS - CLOSED CIRCUIT

    HP2VC series

    HYTEK logo

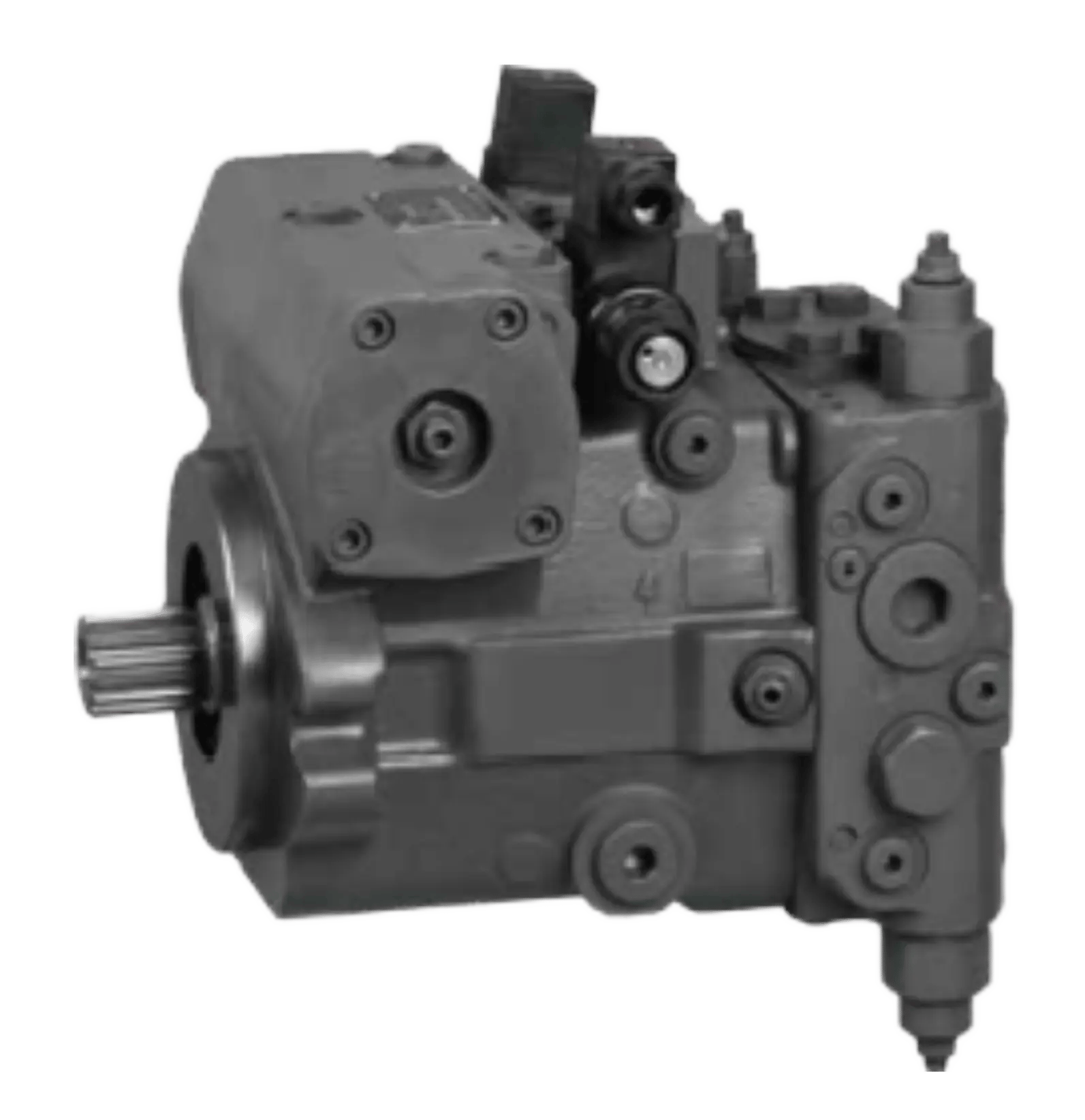

    The HP2VC series by Hytek is a variable displacement axial piston pump with swashplate design, for high-power closed-circuit hydrostatic transmissions. Flow varies smoothly from zero to maximum without external switching components.

    REQUEST QUOTE

    Details

    • Available displacements: from 56 cc to 180 cc
    • Swashplate axial piston design
    • Closed circuit
    • Nominal pressure: 400 bar
    • Maximum pressure: 450 bar
    • Maximum speed: 3,600 rpm
    • Compatible fluid: mineral oil
    • Available controllers: hydraulic pilot pressure control (HD), mechanical lever control (HW, with/without braking valve and neutral position switch), proportional electric control 12V/24V (EP), on/off electric control 12V/24V (EZ)
    • Through-drive available up to SAE E flange (165-4)





     12-MONTH WARRANTY

    Benefits

    • Full bidirectional protection thanks to the double high-pressure valve
    • Integrated and compact boost pump for optimal management of closed-circuit minimum pressure and control flow
    • Multiple pressure controls enabling different flow adjustment options

    Application fields

    • Earthmoving machinery
    • Construction machinery
    • Forestry and agricultural machinery
    • Lifting (cranes) and material handling
    • Industrial and special-purpose vehicles

    Technical data-sheet HP2VC series hytek

    Code Displacement (cm3)Speed nom max (rpm)P nom (bar)P max peak (bar)
    HP2VC56
    56
    3600 400 450
    HP2VC63
    63
    3600 400 450
    HP2VC71
    71
    3300 400 450
    HP2VC125
    125
    2850 400 450
    HP2VC180
    180
    2500 400 450
    Code HP2VC56
    Displacement (cm3) 56
    Speed nom max (rpm) 3600
    P nom (bar) 400
    P max peak (bar) 450
    Code HP2VC63
    Displacement (cm3) 63
    Speed nom max (rpm) 3600
    P nom (bar) 400
    P max peak (bar) 450
    Code HP2VC71
    Displacement (cm3) 71
    Speed nom max (rpm) 3300
    P nom (bar) 400
    P max peak (bar) 450
    Code HP2VC125
    Displacement (cm3) 125
    Speed nom max (rpm) 2850
    P nom (bar) 400
    P max peak (bar) 450
    Code HP2VC180
    Displacement (cm3) 180
    Speed nom max (rpm) 2500
    P nom (bar) 400
    P max peak (bar) 450
