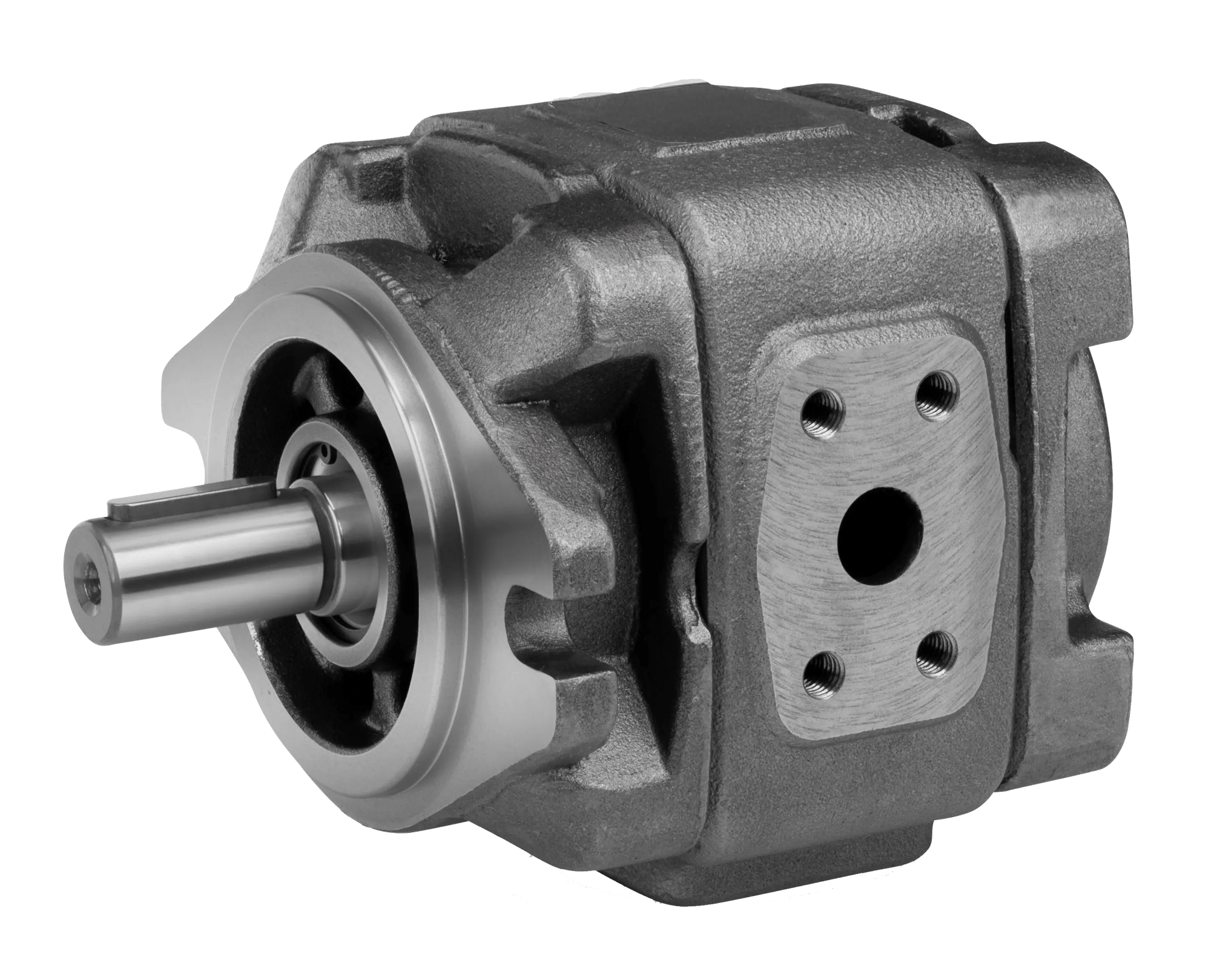

HIGP series
The Hydraut HIGP pumps are internal gear pumps with radial and axial pressure clearance compensation (gap-compensation). Their construction ensures very low pressure pulsation, making them ideal for systems sensitive to vibrations and flow variations.
Details
- Available displacements: from 4cc to 180cc
- Maximum nominal pressure: 315 bar
- Maximum speed: 3,000 rpm
- Compatible fluids: HLP, HFC, HEES, HFD-U
- Available in single or double configuration
Benefits
- Low noise levels at all operating pressures, thanks to the internal gear geometry (involute tooth profile with extended contact length)
- High volumetric efficiency stable over time, with reduced wear and internal losses, thanks to automatic dual clearance compensation
- Significant reduction in pressure pulsation for greater precision
- Energy savings and consistent performance
Application fields
- Plastic and rubber moulding machines
- Machine tools
- Trimming presses
- Hydraulic power units
- Die casting machines
- Press brakes
Technical-data sheet HIGP1 series Hydraut
| Code | Displacement (cm3) | Speed Nom max (rpm) | P nom (bar) | P max peak (bar) | |||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HIGP1 |
|
||||||||||||||||||||||||||||||||||||||||||||||||
Code
HIGP1
Displacement (cm3)
4
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
5
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
6
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
8.2
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
10.2
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
13.3
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
16
Speed Nom max (rpm)
3000
P nom (bar)
315
P max peak (bar)
350
Code
HIGP1
Displacement (cm3)
20
Speed Nom max (rpm)
3000
P nom (bar)
250
P max peak (bar)
300
Code
HIGP1
Displacement (cm3)
24
Speed Nom max (rpm)
3000
P nom (bar)
250
P max peak (bar)
300
